Schema & Settings

The VA StateTree Schema is the configuration on every State Tree asset that uses Vertex Animation. It exposes the per-tree settings that govern how the tree is ticked, how events are filtered, and how animation callbacks are throttled.

Every tooltip on this page is reproduced from the source (VAStateTreeSchema.h) so what you read here matches what the editor shows.

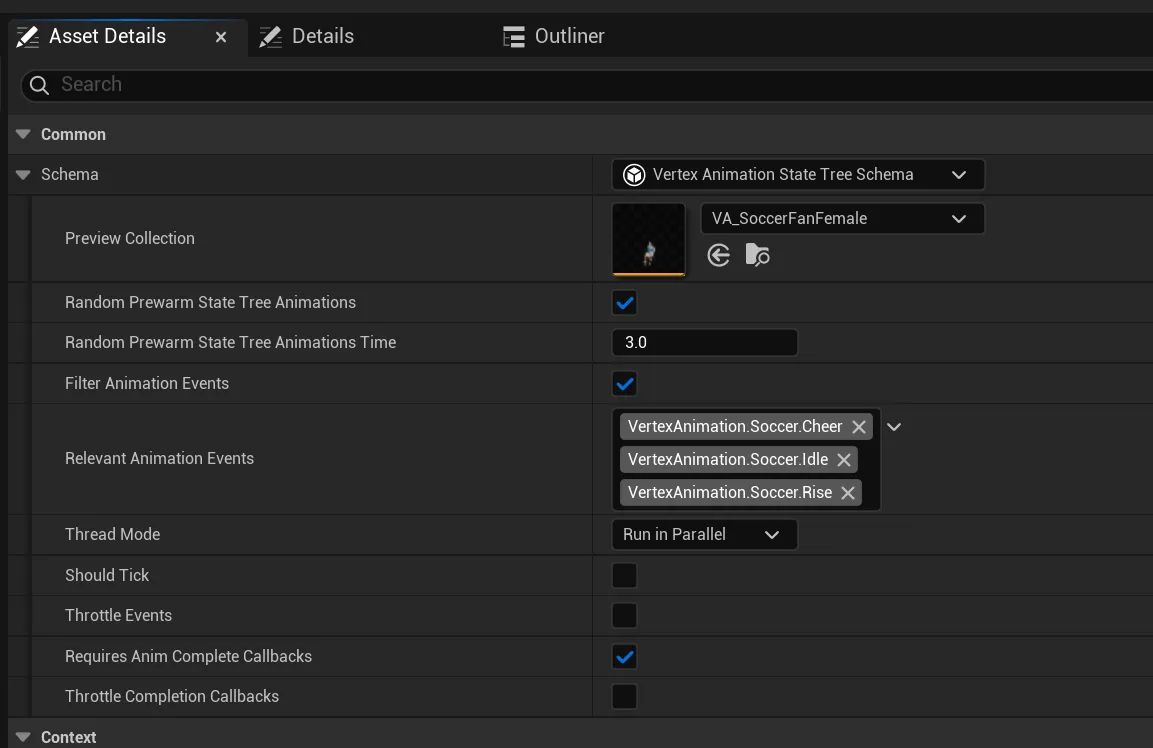

Schema Settings Panel

General

Preview Collection

Type: VA Asset Collection (object reference). Read only at runtime.

The VA Asset Collection the tree uses for editor preview and animation compatibility checks. Setting this makes animation pickers inside the tree context-sensitive. Dropdowns are filtered to the animations that exist in this collection.

Random Prewarm StateTree Animations

Type: bool. Default: false.

If true, the state tree will prewarm its initial animations up to RandomPrewarmStateTreeAnimationsTime. This makes it so all your instances start out of sync. This can greatly improve performance as instances will not call their animation completion events on the same frames.

Enable this on any tree you plan to use for crowds. It’s the single biggest performance win for large instance counts.

Random Prewarm StateTree Animations Time

Type: double (seconds). Default: 2.0.

Amount of time to prewarm and stagger the state tree starts by (See bRandomPrewarmStateTreeAnimations).

Visible only when Random Prewarm is enabled. Each instance’s tree is advanced by a random value between 0 and this amount when it starts.

Events

Filter Animation Events

Type: bool. Default: false.

When enabled, only animation events whose tags appear in Relevant Animation Events are dispatched to this tree. Events that don’t match are discarded before reaching any listening state.

Turn this on if your project broadcasts many unrelated gameplay events on VA Mesh Components and you want to reduce per-event overhead.

Relevant Animation Events

Type: FGameplayTagContainer.

The tag allow-list used by Filter Animation Events. Tag hierarchy applies. Adding Mannequin catches Mannequin.Wave, Mannequin.Cheer, etc. Hidden when Filter Animation Events is off.

Performance

Thread Mode

Type: EVAAnimationUpdateThreads (enum). Default: Run on Game Thread.

Controls where the tree’s updates execute:

Run on Game Thread - simplest; safe for any Blueprint logic called from tasks.

Run in Parallel - tree updates execute via ParallelFor loops across worker threads. “This state tree will execute using ParallelFor Loops. This requires thread safety. Only use if you are sure your logic is correct.”

Default to Game Thread unless you have profiled a need to parallelise and have verified every task and condition is thread-safe. The shipped soccer fan tree runs in Parallel because its logic only reads/writes its own state tree parameters.

Should Tick

Type: bool. Read-only in editor. Default: false.

Internal flag indicating whether the tree needs per-frame ticking. Computed from the tasks and evaluators in use. You don’t set this directly.

Throttle Events

Type: bool. Default: false.

Master switch for event throttling. When a single event fires on a large number of instances in the same frame (for example, a goal-cheer tag broadcast to every fan in a stadium), the throttle spreads the per-instance dispatch across multiple frames instead of processing them all at once. Good for events that fire on many instances simultaneously; not for events that fire often.

Throttle Events Globally

Type: bool. Default: false. Visible only when Throttle Events is on.

If true, a single throttle configuration (Instances Per Update) applies to all event tags this tree receives. If false, each tag can have its own throttle configuration via Event Throttle Settings.

Global Event Throttle Settings

Type: FVAThrottledUpdateSettings. Visible only when Throttle Events and Throttle Events Globally are both on.

The throttle settings used for every event. The main field is Instances Per Update (default 3000), which is the maximum number of instances dispatched in a single frame. Remaining instances roll over to subsequent frames.

Event Throttle Settings

Type: TMap<FGameplayTag, FVAThrottledUpdateSettings>. Visible only when Throttle Events is on and Throttle Events Globally is off.

Per-tag throttle configuration. Add an entry for each tag you want to spread across frames; omitted tags dispatch to every instance on the broadcast frame.

Requires Anim Complete Callbacks

Type: bool. Default: true.

When true, the tree subscribes to animation completion so On State Completed transitions can fire. Set to false for trees that only use event-based transitions. Saves a callback per animation end, per instance. Leaving this on is safe and has no effect on trees that don’t use completion transitions.

Throttle Completion Callbacks

Type: bool. Default: false. Visible only when Requires Anim Complete Callbacks is on.

Spreads completion callbacks across frames when many instances finish their animations on the same frame. Useful when a large crowd plays identical-length animations and would otherwise fire all of their completion callbacks in lock-step.

Completion Throttle Settings

Type: FVAThrottledUpdateSettings. Visible only when Throttle Completion Callbacks and Requires Anim Complete Callbacks are both on.

The Instances Per Update setting applied to completion callbacks.

Project Settings (Global)

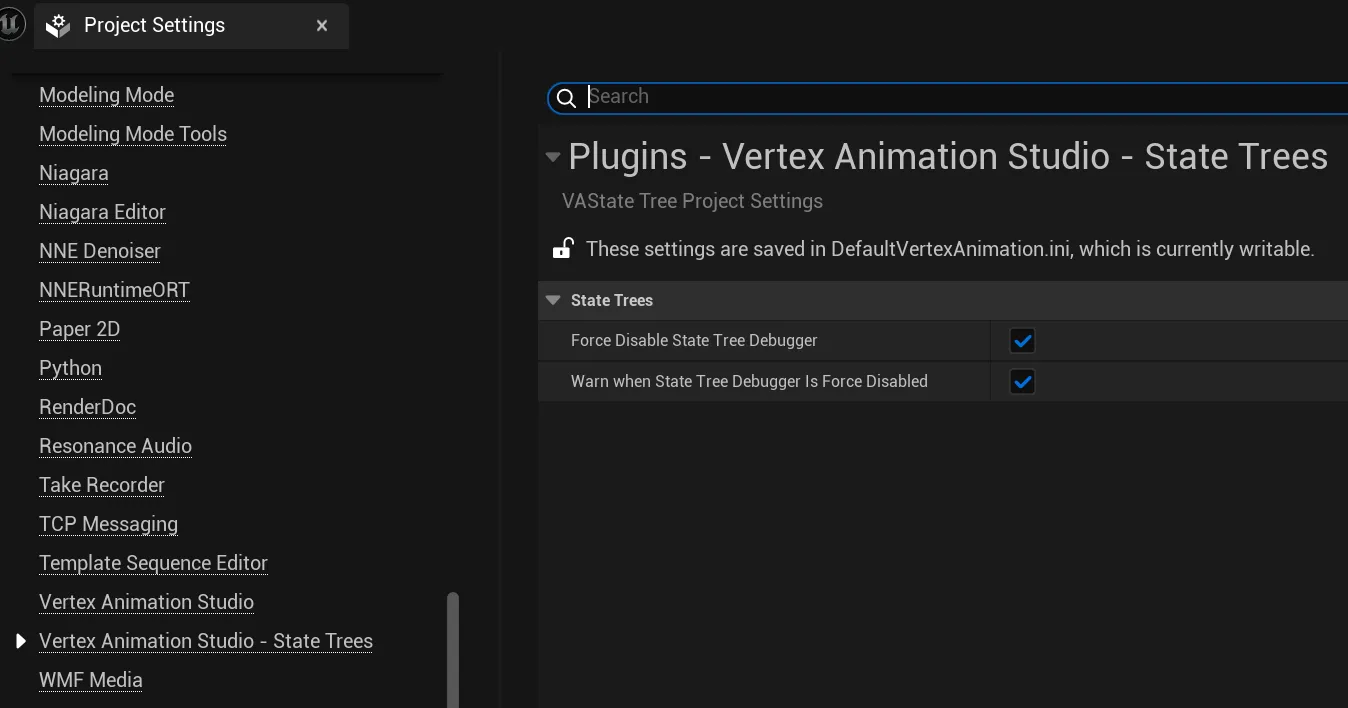

The plugin adds a settings section under Project Settings → Plugins → Vertex Animation Studio - State Trees. These values apply project-wide and are saved to DefaultVertexAnimation.ini.

VA StateTree Project Settings

Force Disable StateTree Debugger

Type: bool. Default: true (debugger disabled).

Unreal’s StateTree Debugger captures per-instance execution traces for the Rewind Debugger. For large VA crowds this is extremely expensive. Every instance streams debugging data every frame. Keeping this enabled (debugger off) is strongly recommended unless you are actively debugging a small scenario.

Warn When StateTree Debugger Is Force Disabled

Type: bool. Default: true.

Prints a warning to the log when the debugger is suppressed. Useful feedback for developers used to the normal StateTree debugging flow so they don’t spend time wondering where their traces went.

Config File Entries

The same settings are written to Config/DefaultVertexAnimation.ini:

[/Script/VertexAnimationStateTrees.VAStateTreeProjectSettings]
bForceDisableStateTreeDebugger=True
bWarnWhenStateTreeDebuggerIsForceDisabled=True

Check this file into source control so the whole team gets the same defaults.

Performance Checklist

When scaling a crowd past a few hundred instances:

✅ Random Prewarm StateTree Animations ON. Stops lock-step animation and spreads completion callbacks across frames.
✅ Force Disable StateTree Debugger. Mandatory for crowds. Already the default.
✅ Filter Animation Events ON. Trim events down to the tags each tree actually uses.
✅ Throttle Events Per Tag. Spread large-crowd events across frames so thousands of instances don’t all react on the same frame.
⚠️ Thread Mode = Run in Parallel. Profile first; only move off Game Thread if you need the headroom, and audit every task and condition for thread safety.
