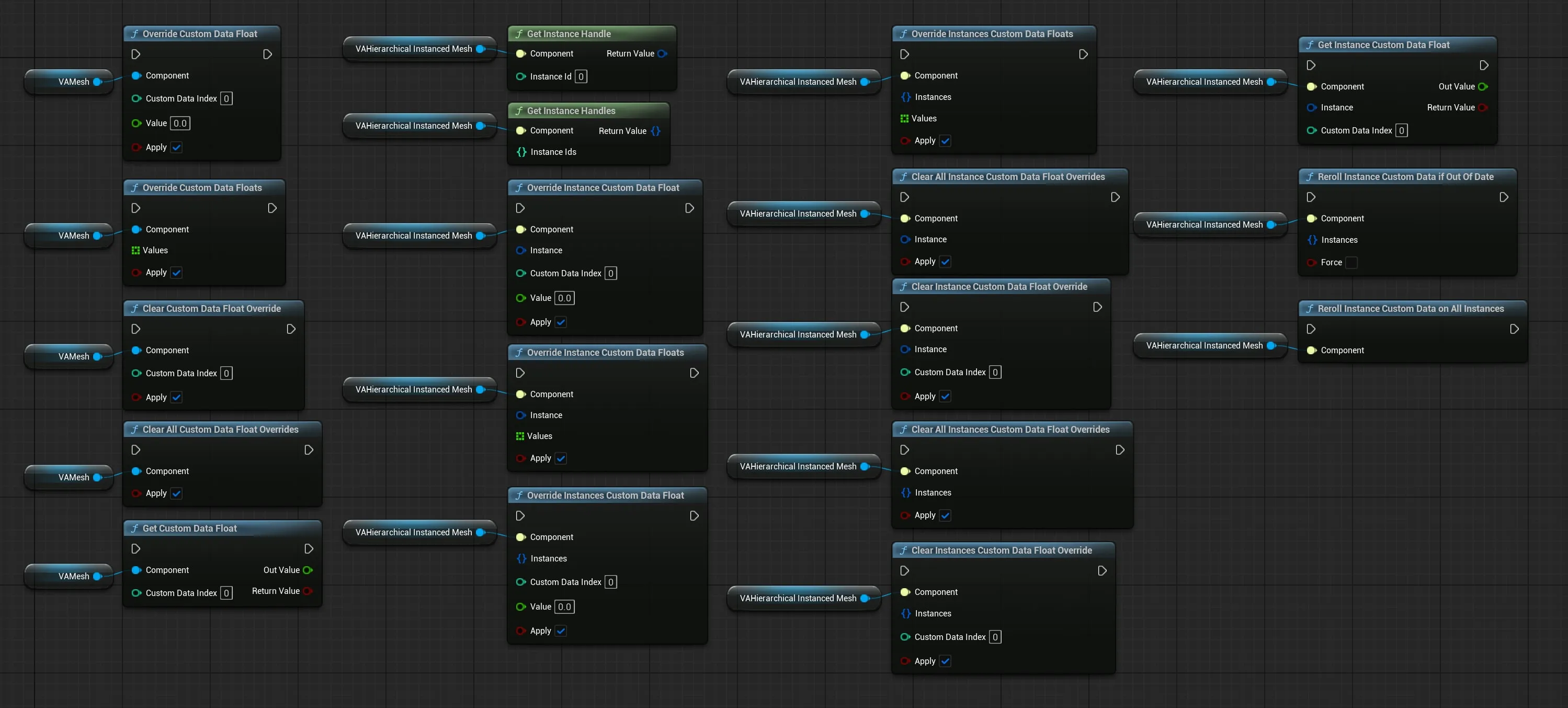

Custom Data Float Nodes

These Blueprint nodes let you read and override the per-instance custom data floats that drive material variation. Use them to override the randomized value an asset normally generates, for example forcing a specific colour, swatch, or numeric ID on a particular instance.

For the underlying concept and how to wire custom data into a material, see Custom Data - Instance Variations.

Concepts

Absolute vs. User Slot Indices

Custom data slots are addressed by absolute index, matching the index used in your material’s Per Instance Custom Data node:

• Indices 0–11 are reserved by the plugin (animation state, blending, etc.). Don’t write to these.
• Indices 12+ are the user slots you configure in the asset’s Per Instance Custom Data list.

Reserved Indices

The first 12 custom data slots (indices 0 through 11) are reserved for internal plugin use. Any node that takes a Custom Data Index expects the absolute material-side index, so your first user slot is 12, your second is 13, and so on. Writing to a reserved index will overwrite animation state and break playback.

The exception is the array-based nodes (Override Custom Data Floats and its instance variants). They have no index input. The array is indexed from the first user slot automatically, so Values[0] → user slot 0 (absolute index 12), Values[1] → user slot 1 (absolute index 13), etc. The plugin handles the offset for you.

User Overrides and Reroll

Each instance tracks which slots have been user-overridden:

• Calling an override node marks the touched slot(s) as user-overridden. Subsequent rerolls will not clobber them.
• Calling a clear node removes the override flag and rerolls the slot from the asset’s configured range.

This means once you Override Custom Data Float on an instance, that value sticks until you explicitly clear it or override it with a new value.

The Apply Pin

Every override and clear node accepts an Apply boolean (default true). The pin only controls when the renderer is updated. The saved value is written immediately either way:

• Apply = true: writes the new value and pushes it to the renderer in the same call. For instanced components this updates PerInstanceSMCustomData; for non-instanced (VAMesh) components it updates material scalar parameters.
• Apply = false: writes the new value but skips the renderer update. The change is staged on the instance and will be picked up the next time something triggers a reapply.

Stacking Writes for Performance

Each call with Apply set to true triggers a renderer push, which is wasted work if you’re about to make several more changes in a row. The cheaper pattern is to stack writes with Apply off, then enable Apply on the final call. That final call’s reapply will include every prior staged change.

For example, applying three overrides to a single VAMesh:

1. Call Override Custom Data Float (Index 12, Value 0.7) with Apply = false
2. Call Override Custom Data Float (Index 13, Value 1.0) with Apply = false
3. Call Override Custom Data Float (Index 14, Value 0.25) with Apply = true

All three values land on the instance, but the renderer only gets updated once.

Caution

For the Generic batch nodes, the final reapply only covers the instances passed to the final call. If you’ve been staging writes across different instance sets, make sure the final Apply = true call’s instance set covers everything you touched. Otherwise the unincluded instances will hold staged values without a renderer push until the next reapply.

UVAMeshComponent Nodes

Tip

UVAMeshComponent nodes skip the instance handle boilerplate since a UVAMeshComponent always has a single instance. Use these for single-character setups.

Found under Vertex Animation | Mesh in the Blueprint action menu.

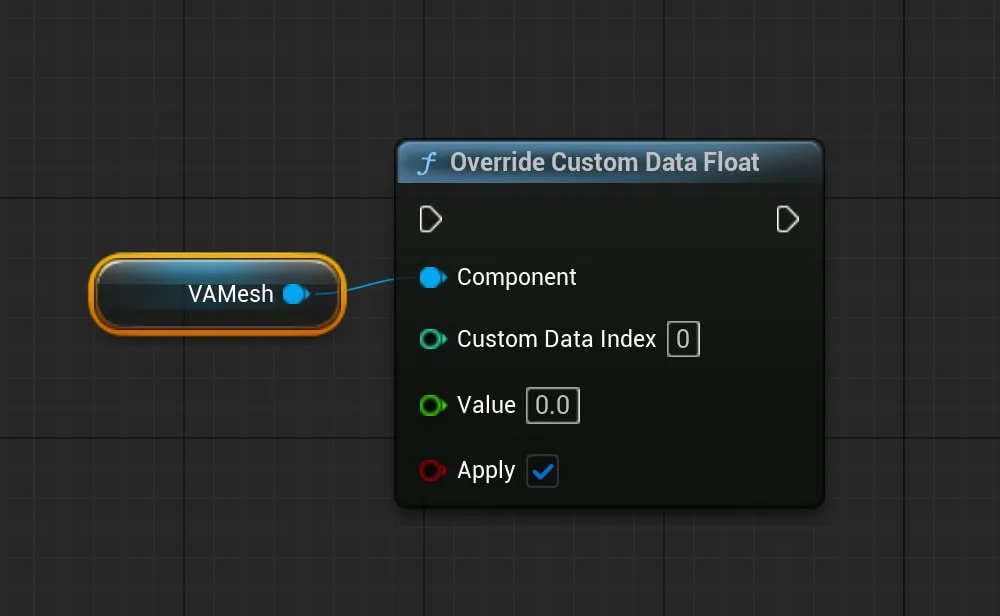

Override Custom Data Float

Sets one custom data slot on the mesh and marks it as user-overridden so reroll won’t clobber it.

• Component: The UVAMeshComponent
• Custom Data Index: Absolute material-side index (user slots start at 12)
• Value: New float value
• Apply: Push the change to the renderer immediately (default true)

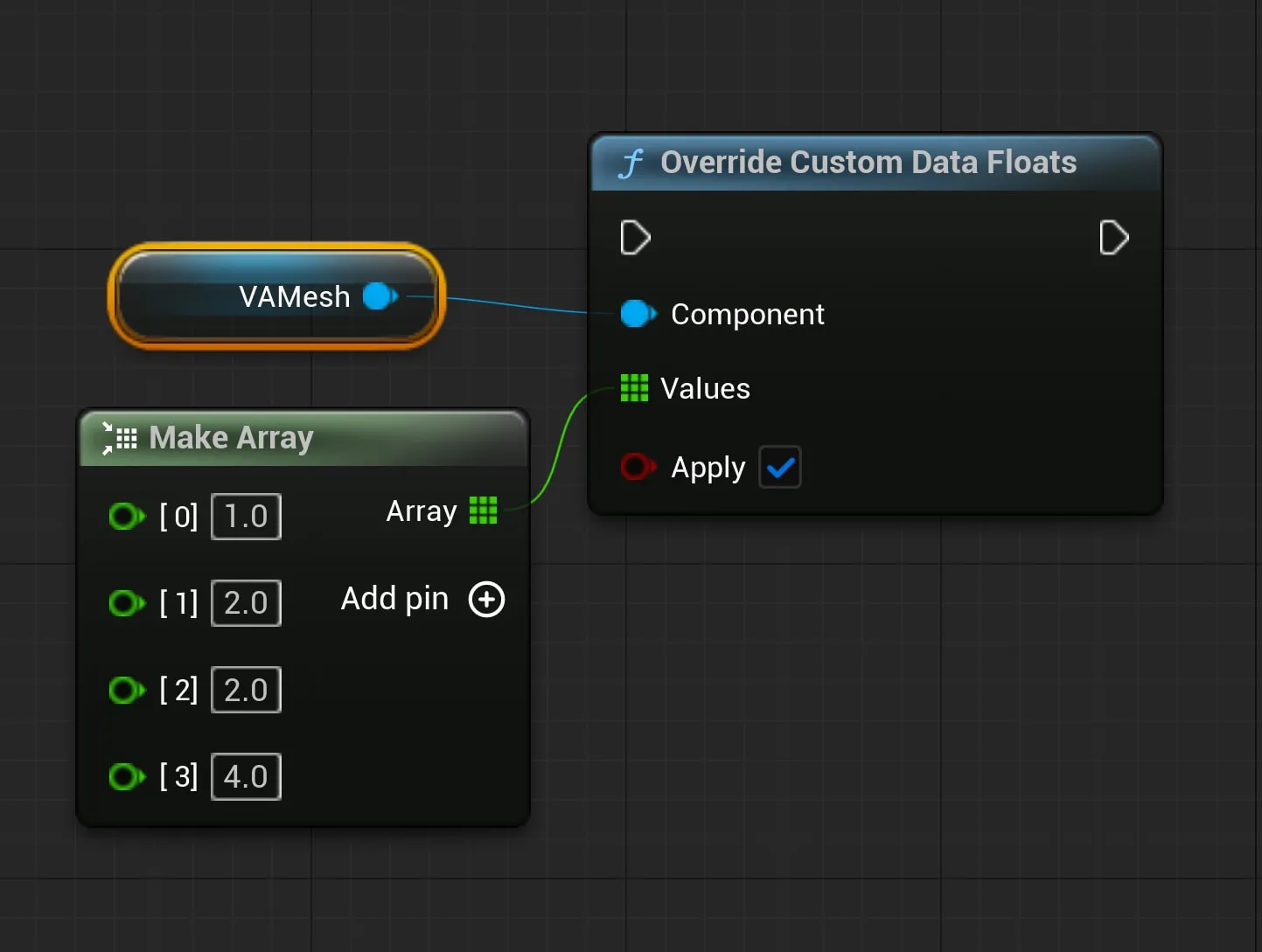

Override Custom Data Floats

Sets multiple user custom data slots on the mesh in one call. The array is indexed from the first user slot, so Values[0] maps to the first user slot, Values[1] to the second, and so on.

• Component: The UVAMeshComponent
• Values: Array of float values, one per user slot
• Apply: Push the change to the renderer immediately (default true)

Clear Custom Data Float Override

Removes the user-override flag for the given slot and rerolls that slot from the asset’s configured range.

• Component: The UVAMeshComponent
• Custom Data Index: Absolute material-side index
• Apply: Push the change to the renderer immediately (default true)

Clear All Custom Data Float Overrides

Removes all user-override flags on the mesh and rerolls every slot from the asset’s configured ranges.

• Component: The UVAMeshComponent
• Apply: Push the change to the renderer immediately (default true)

Get Custom Data Float

Reads the currently-stored custom data float from the mesh.

• Component: The UVAMeshComponent
• Custom Data Index: Absolute material-side index
• Out Value: The current float value
• Return Value: Boolean (false if the index is invalid)

Generic Nodes

Note

Generic nodes work with any VA component type (UVAMeshComponent, UVAInstancedMeshComponent, and UVAHierarchicalInstancedMeshComponent) and accept an instance handle to target a specific instance. Batch variants accept a set of instance handles for efficient bulk updates across crowds.

Found under Vertex Animation | Generic in the Blueprint action menu.

Override Instance Custom Data Float

Sets one custom data slot on a single instance and marks it as user-overridden.

• Component: Any VA component
• Instance: Handle of the instance to modify
• Custom Data Index: Absolute material-side index
• Value: New float value
• Apply: Push the change to the renderer immediately (default true)

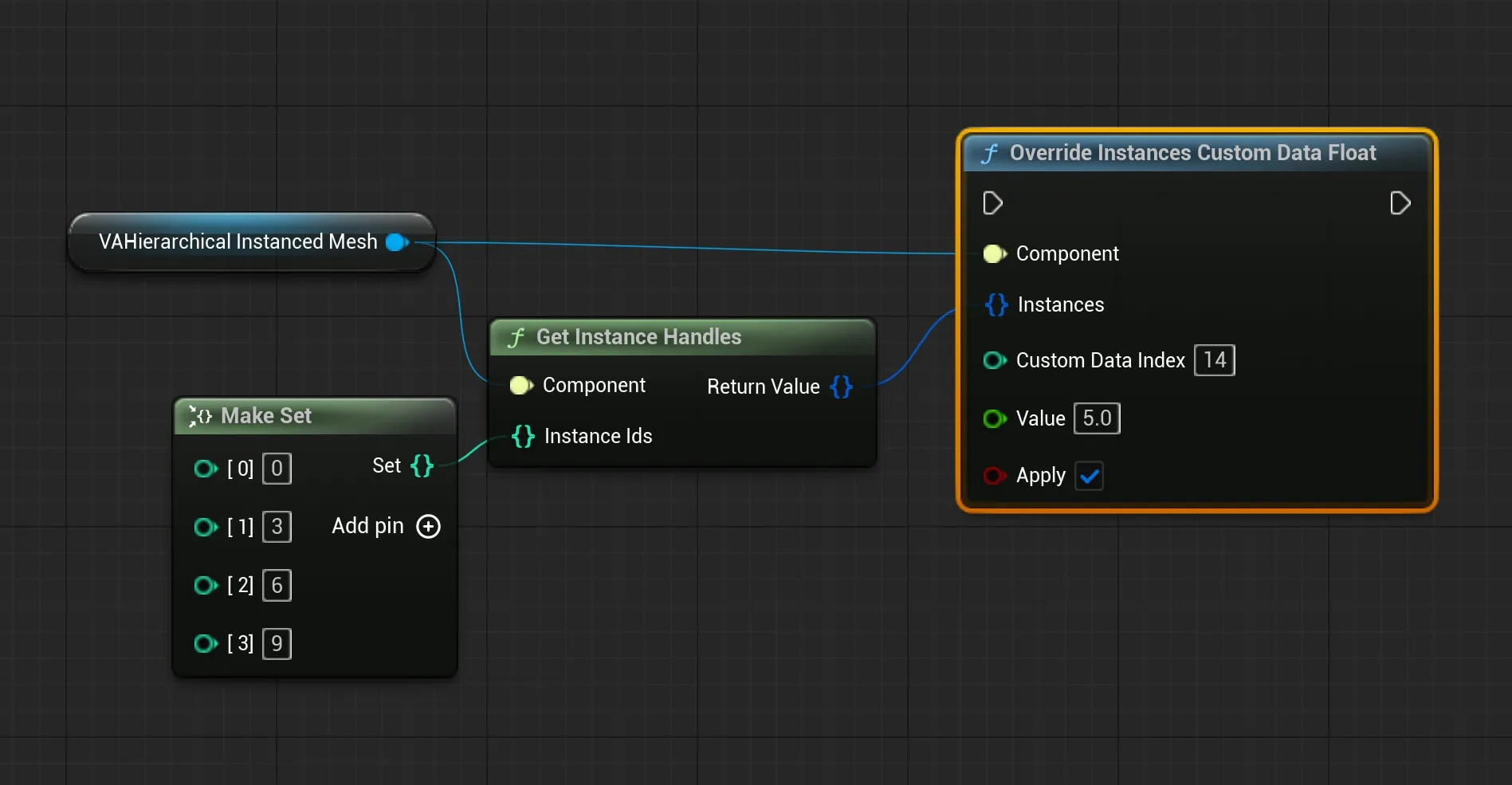

Override Instances Custom Data Float

Batch variant. Sets the same slot to the same value across many instances. The reapply pass runs once after all writes.

• Component: Any VA component
• Instances: Set of instance handles
• Custom Data Index: Absolute material-side index
• Value: New float value
• Apply: Push the change to the renderer immediately (default true)

Override Instance Custom Data Floats

Sets multiple user slots on a single instance from an array. Values[0] maps to the first user slot, Values[1] to the second, etc.

• Component: Any VA component
• Instance: Handle of the instance to modify
• Values: Array of float values, one per user slot
• Apply: Push the change to the renderer immediately (default true)

Override Instances Custom Data Floats

Batch variant. Sets multiple user slots from an array across many instances at once. Values[0] maps to the first user slot, Values[1] to the second, etc.

• Component: Any VA component
• Instances: Set of instance handles
• Values: Array of float values, one per user slot
• Apply: Push the change to the renderer immediately (default true)

Clear Instance Custom Data Float Override

Removes the user-override flag for one slot on one instance and rerolls that slot.

• Component: Any VA component
• Instance: Handle of the instance to modify
• Custom Data Index: Absolute material-side index
• Apply: Push the change to the renderer immediately (default true)

Clear All Instance Custom Data Float Overrides

Removes all user-override flags on one instance and rerolls every slot.

• Component: Any VA component
• Instance: Handle of the instance to modify
• Apply: Push the change to the renderer immediately (default true)

Clear Instances Custom Data Float Override

Batch variant. Clears one slot’s override on many instances and rerolls.

• Component: Any VA component
• Instances: Set of instance handles
• Custom Data Index: Absolute material-side index
• Apply: Push the change to the renderer immediately (default true)

Clear All Instances Custom Data Float Overrides

Batch variant. Clears every override on many instances and rerolls every slot.

• Component: Any VA component
• Instances: Set of instance handles
• Apply: Push the change to the renderer immediately (default true)

Get Instance Custom Data Float

Reads the currently-stored custom data float for one instance.

• Component: Any VA component
• Instance: Handle of the instance to read
• Custom Data Index: Absolute material-side index
• Out Value: The current float value
• Return Value: Boolean (false if the index or instance is invalid)
